Key Feature:

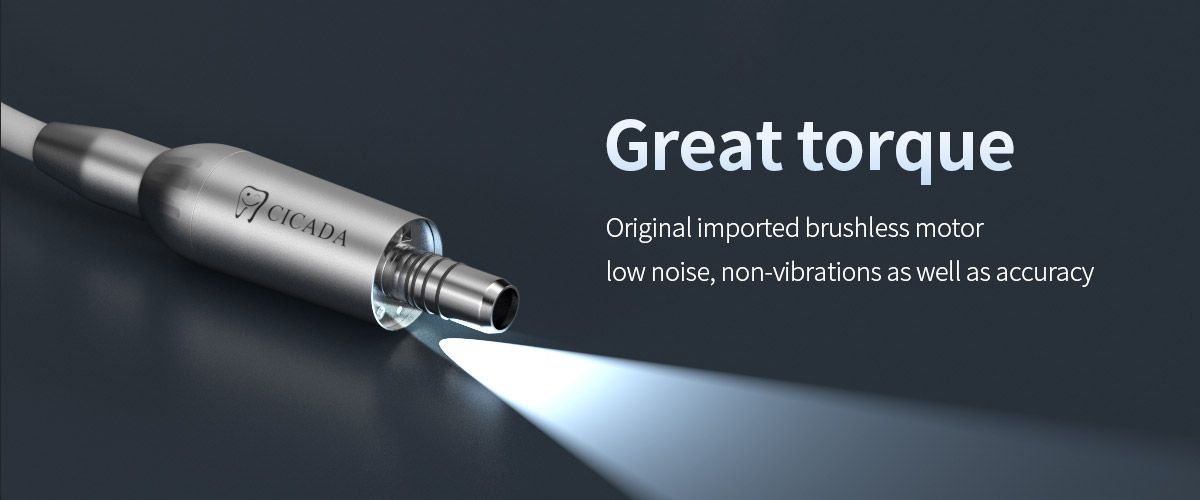

60N/cm Torque brush-less electric motor
Low noise and low vibration
Motor speed is 200-40,000rpm

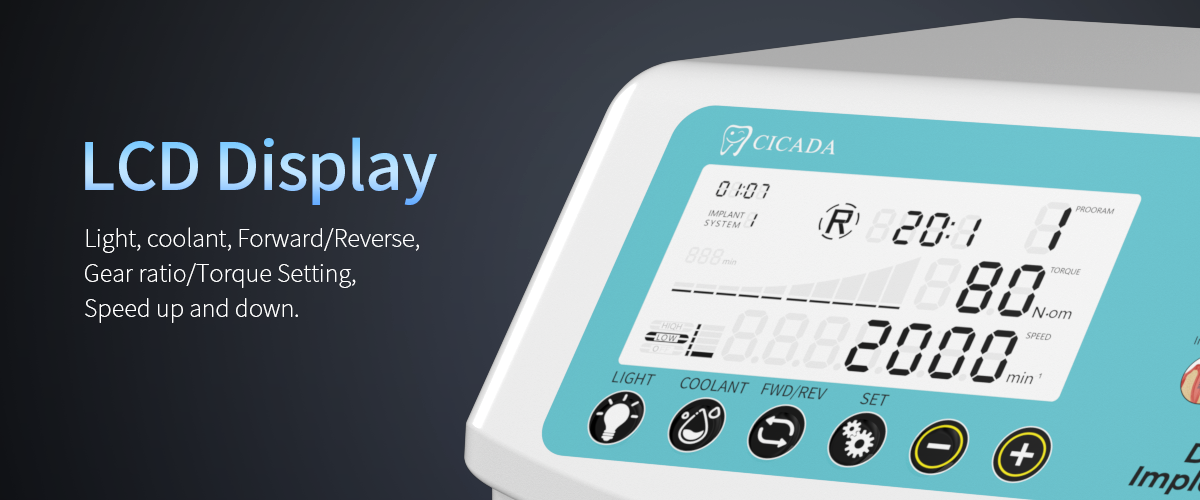

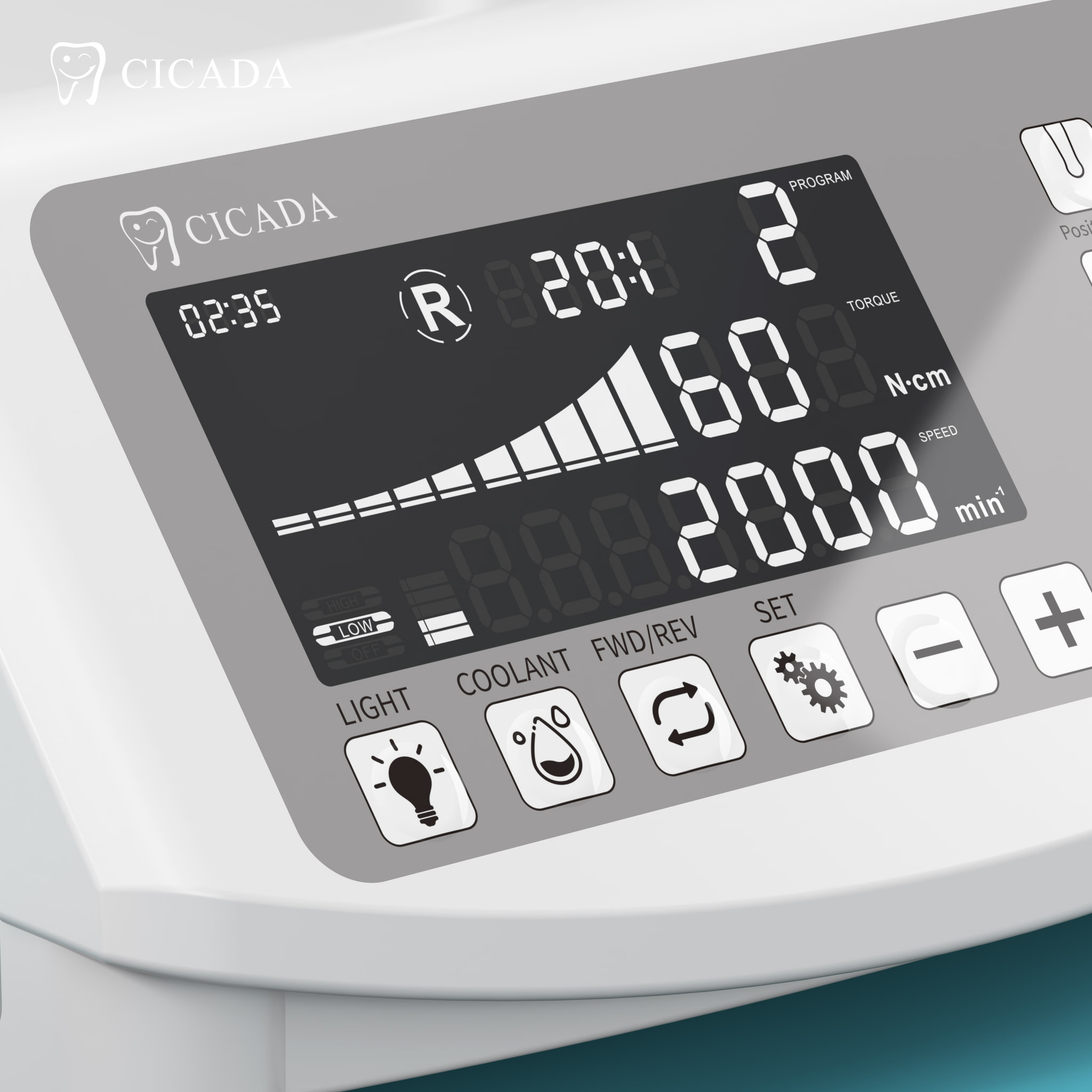

Large display quickly identifies selected operating procedures

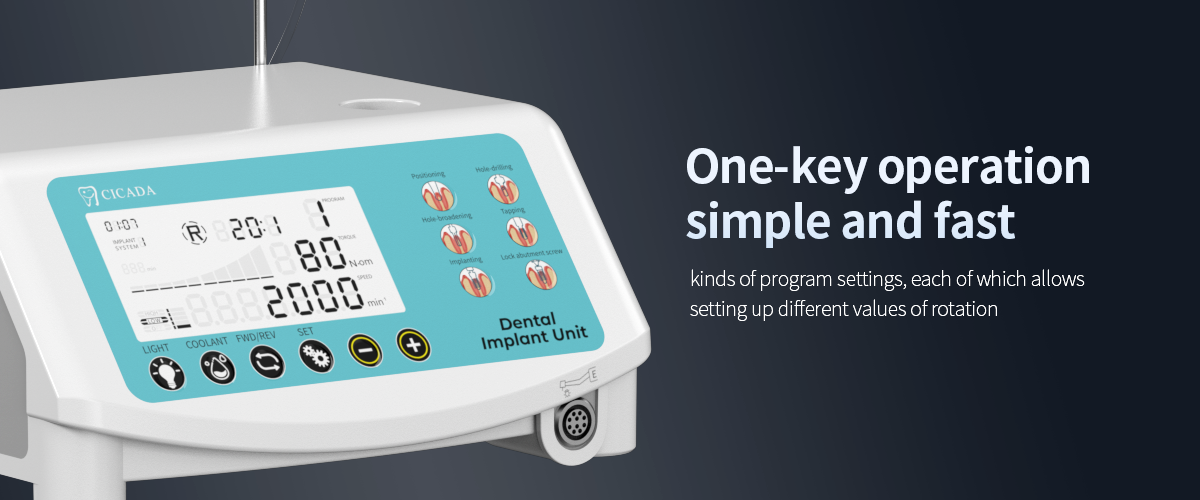

10 kinds of program memory functions
High temperature and high pressure sterilizable electric motor

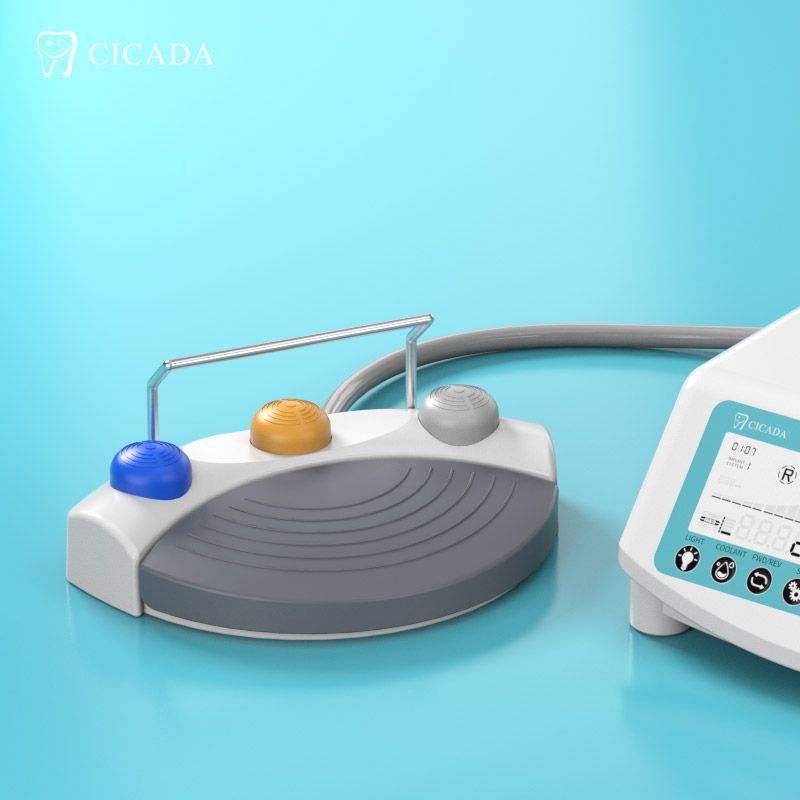

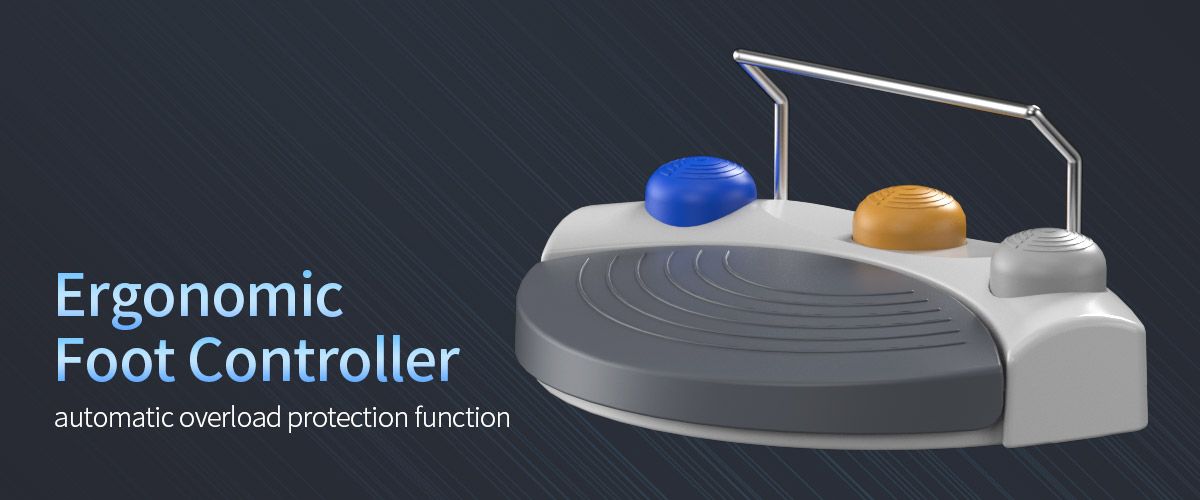

Newly designed foot pedals that comply with IPX2 international
Waterproof standard to control speed, program, water supply and speed direction
INQUIRYTechnical Specification:
|
Model |
Surgical Pro |
|
Input Power Supply |
AC100-110V or AC220-240V 50/60HZ |
|
Motor Rotation Speed Range |
200-40,000rpm |
|
Torque Range |
60N.cm |
|
Coolant Flow |
0-80ml/min |
|
Stored Programs |
8 types |
Control Unit:
|
Input power |
AC 220V 50HZ |
|
Consumption power |
120VA |
|
Water pump output |
0ml/min-120ml/min |
|
Fuse |
F3AL 250V |
|
Size |
285*265*155mm |
Motor:
|
Rotary speed |
300r/min -5000r/min |
|
input voltage |
DC30V |
Operation Conditions:
Storage Condition: Temperature: -10℃-50℃
Humidity: <80%
Atmospheric pressure: 50KPa-106Kpa
Environment Conditions: Not near from fire equipment or flammability material.
Accessories:
|
Control unit |
1 |
|
Foot pedal |
1 |
|
Power cable |
1 |
|
Motor (with cable) |
1 |
|
Water bottle |
1 |
|
Motor bracket |
1 |
|
Pipeline snap ring |
8 |
|
Y type shunt tube |
1 |
|
Internal channel nozzle |
1 |
|
Fuse |
1 |
|
Steam plug |
1 |
|
Water supply pipe |
1 |
|
Bending head nozzle |
1 |
|
Instructions for use |
1 |
